Характеристики
| Параметр |
Значение |
| Country of Origin: |
China |
| Anamorphic Mode: |
1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) |

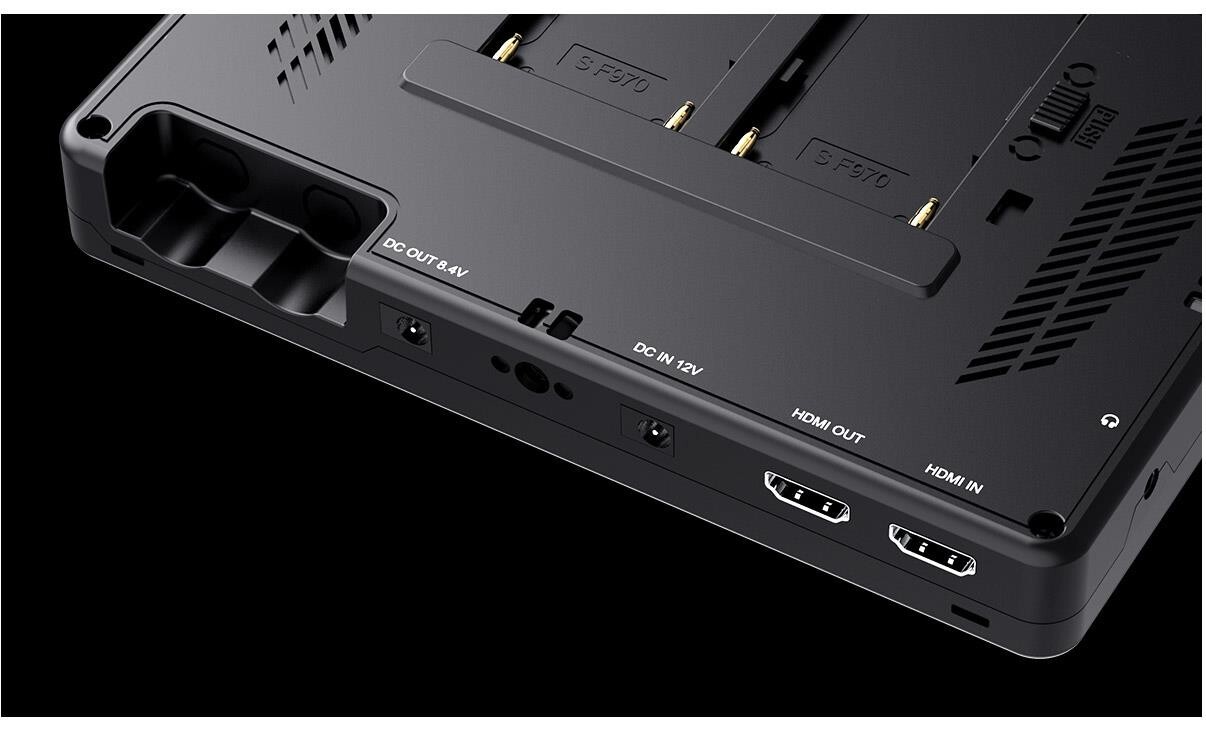

| Battery Plate: |
Dual F970 Battery Plate |
| Производитель: |
Feelworld |
| Check Field: |
(Red, Green, Blue, Gray) |
| Color System Type: |
NTSC |
| Compatible Mount: |
Battery Mount, Hot-Shoe Mount, Without Mount |
| Connectivity: |
HDMI |
| Display Type: |
LCD |

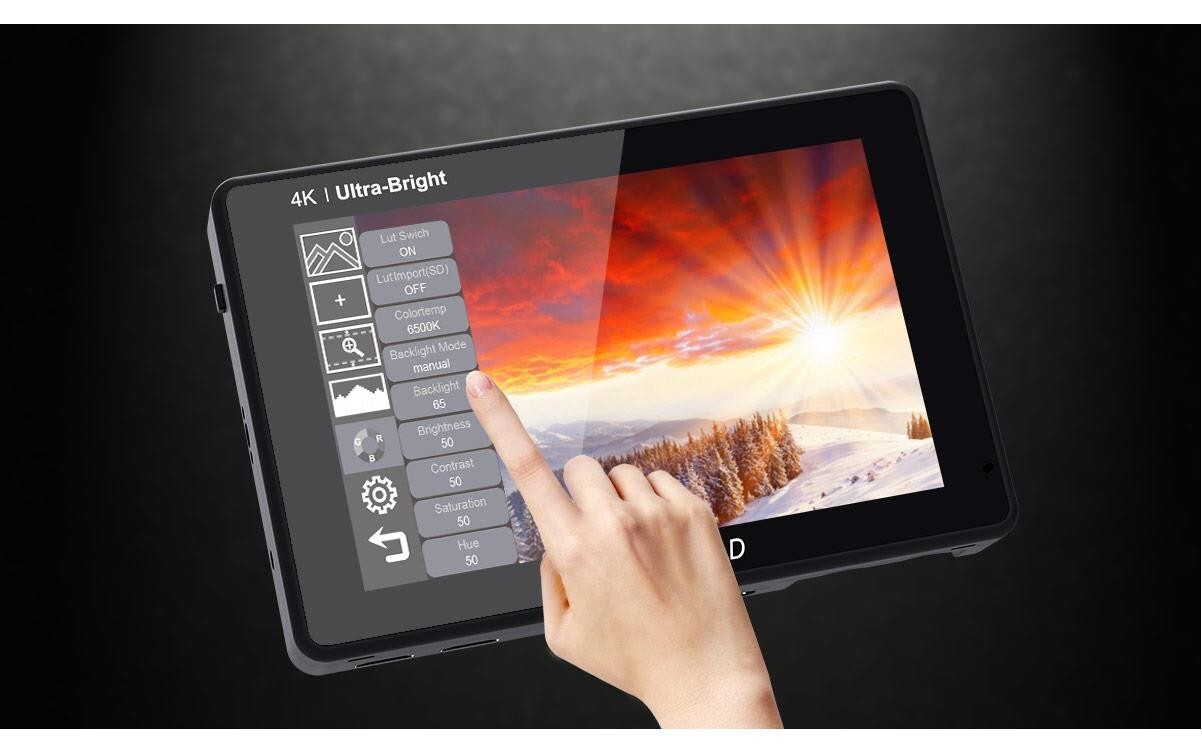

| Особенности: |
Touchscreen, LCD Monitor, Display |
| Form Factor: |
Field Monitor |
| Image Control: |
Waveform, Blue Only Mode, Histogram, Underscan, Audio Meter, Focus Peaking, DSLR Scaling, False Color, Image Flip, Anamorphic De-squeeze, Custom LUTs, Vectorscope, Focus Assist |
| Image Flip: |
(H, V, H/V) |
| Input: |
1 X HDMI |
| Input Interfaces: |
HDMI |
| Input Voltage: |
DC7～24V |
| Install Way: |
1/4"-20 Thread Socket (Left, Right, Bottom) |
| Item Height: |
126mm |
| Item Length: |
190mm |
| Item Weight: |
460g |
| Item Width: |
27mm |
| MPN: |
LUT7 |
| Manufacturer Warranty: |
1 Year |
| Marker Color: |
(red, green, blue, white, black, yellow) |
| Модель: |
Feelworld LUT7 |
| Number of Inputs: |
1 |
| Number of Outputs: |
2 |
| Output Interfaces: |
HDMI |
| Outputs: |
1 X HDMI, 1 X DC |
| Parade: |
(RGB, YUV, Y) |
| Peaking Focus: |
(red, green, blue, white, yellow, 1~10 peaking level adjustab |
| Power Consumption: |
≤16W |
| Линейка продуктов: |
Feelworld LUT7 |
| Ratio Marker: |
(16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
| Safety Marker: |
(70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) |

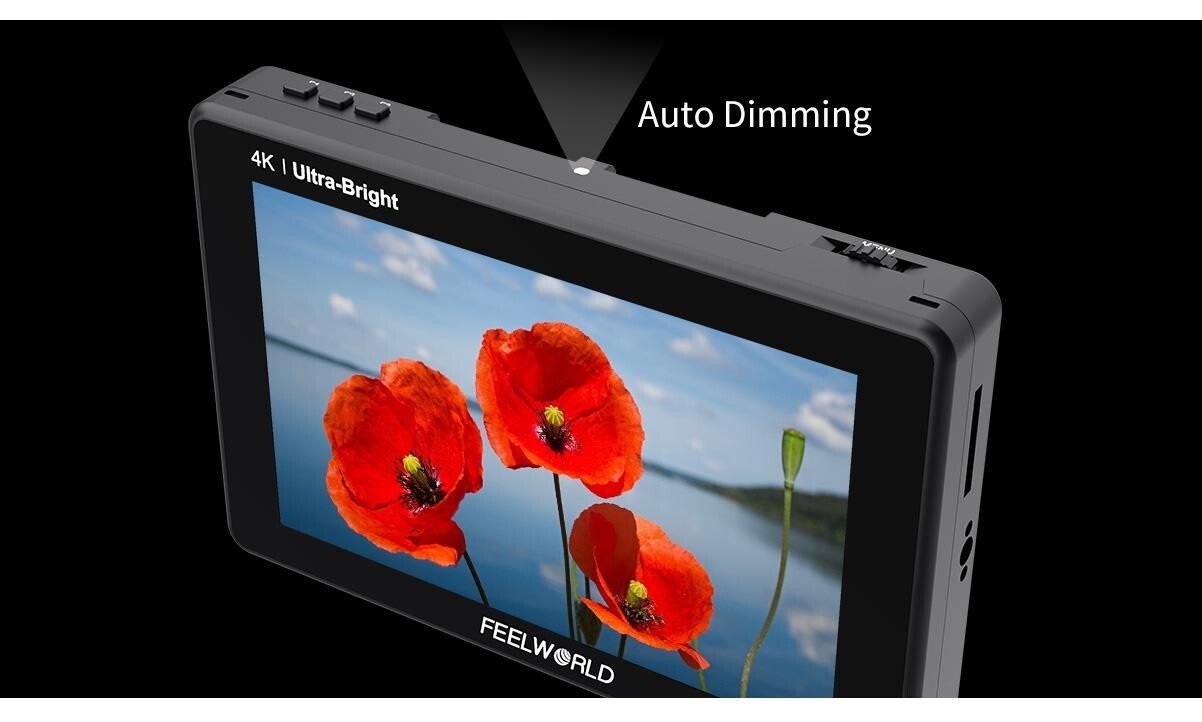

| Screen Brightness: |
2200 |
| Размер экрана: |
7 in |
| Special Effects: |
DSLR, Camera |
| Storage Temperature: |
-30°C~60°C |
| Тип: |
Video Monitor |
| Video Format: |
FHD |
| Viewing Angle: |
80°/80°(L/R) 80°/80°(U/D) |
| Working Temperature: |
-20°C~50°C |
| Zebra Exposure: |
(1%~100% adjustable) |
| Zoom: |
(100%~300%) |
